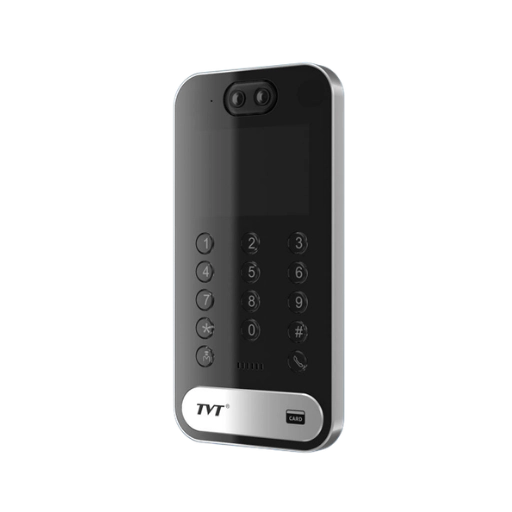

Video Intercom Door Station

Rs. 47,500.00

TD-E2223-EM/IC/PE/WF is a 2MP face-recognition video door station with a 3.5-inch TFT screen and real-time H.265 video coding at 1920 × 1080 resolution. It supports face, card, password, indoor-station and mobile-app access methods, 2.4GHz Wi-Fi, P2P, intelligent face analytics, PoE power and IP67 ingress protection.

Specifications

Model		TD-E2223-EM/IC/PE/WF
Camera	Image Sensor	1/2.8-inch progressive-scan CMOS
	Image Size	1920 × 1080
	Electronic Shutter	Auto/Manual; manual: 1/2s to 1/100000s
	Iris Type	Fixed iris
	Minimum Illumination	Colour: 0.0085 lux at F1.2, AGC on; B&W: 0 lux with IR
	Lens	M8 HD dual lens: 2.3mm at F2.2 Vertical FOV: approximately 74° Horizontal FOV: approximately 139° Diagonal FOV: approximately 170°
	WDR	120dB
	S/N Ratio	≥50dB
	BLC	Yes
	HLC	Yes
	Defog	Yes
	DNR	2D/3D noise reduction
Image	Video Compression	Main stream: H.265+ / H.265 / H.264+ / H.264 Sub/third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
	H.264 Compression Standard	Baseline Profile / Main Profile / High Profile
	Bit Rate Type	VBR / CBR
	Bit Rate	64Kbps–6Mbps
	Resolution	1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240
	Main Stream	1920 × 1080/1280 × 720 at 1–30fps for 60Hz or 1–25fps for 50Hz
	Sub Stream	720P/D1/CIF at 1–30fps for 60Hz or 1–25fps for 50Hz
	Third Stream	D1/CIF/480 × 240 at 1–30fps for 60Hz or 1–25fps for 50Hz
	Image Setting	Saturation, hue, brightness, contrast, wide dynamic range, sharpness and noise reduction; adjustable through the client or web browser
	Audio Compression	G.711A/U
Screen	3.5-inch TFT Screen	Resolution: 320 RGB × 480
	Brightness	250cd/m²
	Automatic Sleeping	Supports automatic wake-up when a person is detected or when a button is pressed
Card	Card Type	Mifare card / Desfire card / FM1208 card / Gicard / EM card
	Card Reading Protocol	ISO 14443A/B protocol and EM41XX
	Card Reading Frequency	13.56MHz and 125KHz
	Card Reading Duration	<1 second
	Card Reading Distance	0–2cm
	Card Capacity	10,000
Interfaces	Network	RJ45 (10/100 Base-T)
	Video Output	No
	Audio	Built-in microphone × 1 and built-in speaker × 1; supports noise suppression and echo cancellation
	Storage	Built-in microSD card slot × 1; supports up to 256GB
	Reset	Yes
	RS485	Yes, for card-reader or access-control system connection
	Wiegand Interface	Yes; Wiegand input or output is configurable
	Alarm	2CH alarm input and 1CH alarm output
	Door Lock Output	2CH
	Door Contact Input	2CH
	Exit Button	2CH
	Anti-Tamper Interface	1CH
	Card-Swiping Area	Supports IC and EM cards
	Digital Buttons	Yes
	Wi-Fi	Supports 2.4GHz Wi-Fi
Access Control	Personal Properties	Face picture, ID number, list type or group, name, gender, age, phone number, card ID, password, door-opening mode and note
	Door Opening Modes	Face recognition / card swiping / password / indoor station / mobile app
	Schedule	Yes
	Mask Detection	Yes
	Secondary Door Station	Yes
	Capacity	Records up to 50,000 event items
Function	Remote Monitoring	Remote control through Web Client, indoor station or CMS
	Online Connection	Supports simultaneous monitoring for up to 10 users Supports real-time multi-stream transmission
	Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTPS, QoS and SIP
	Interface Protocol	ONVIF
	Storage	Network remote storage and SD card storage
	Intelligent Analytics	SD card error, SD card full, IP-address conflict and network disconnection
	General Function	Watermark, IP-address filtering, heartbeat and illegal-login detection
	PoE	Yes, IEEE 802.3af
	P2P	Yes; enabled by default
	IR Distance	0.3–2m
	Protection Grade	IP67 and IK04
	Network Security	Video encryption, firmware encryption, configuration encryption, digest authentication, illegal-login lock, IP-address filtering, HTTPS and 802.1x
Intelligent Analytics	Intelligent Analytics	Face detection, face capture and face comparison
	Face Detection	A facial image with a pupil distance of more than 20 pixels can be detected
	Face Capture	Outputs the optimal face image through precise detection, tracking, capturing, scoring and screening of moving faces
	Original Image Capturing	Supports original-image capturing and user-defined overlaid information, including device ID and time
	Face Picture Database	10,000
	Face Comparison Storage	Face pictures can be added, modified or deleted in the face database
	Face Picture Adding	Add face pictures through the Web Client, NVR or NVMS
	External Face Picture Enrolment	File size less than 200KB; JPG/JPEG format
	Face Comparison Alarm	Face-detection alarm, allow list, block list and stranger alarm
Others	Power	DC 12V / PoE
	Power Consumption	<12W
	Environmental Protection	RoHS 2.0, REACH, WEEE and Directive 94/62/EC
	Working Environment	-20°C to 60°C; humidity less than 95% (non-condensing)
	Dimensions	Approximately 210 × 104 × 30mm
	Net Weight	Approximately 0.6kg
	Installation	Wall mounting

Features

3.5-inch TFT screen.
2MP (1920 × 1080) real-time H.265 video coding.
Face-recognition distance of 0.3–2m.
Supports face-detection technology that distinguishes real faces from non-real face spoofing attacks.
Supports 3D DNR, HWDR, BLC, HLC and defog.
Supports multiple door-opening modes, including card swiping, password and face recognition.
Supports door opening through an indoor station or mobile app.
Supports copy prevention and encryption for IC cards.
Supports anti-tampering alarms and alarms when the door is unsecured or forcibly opened.
Supports calling an indoor station or mobile app.
Supports card-reader access through the RS485 interface.
Supports 2.4GHz Wi-Fi and P2P.
Supports remote surveillance through a mobile app, web browser or tablet PC.
Intelligent analytics include video-exception detection, face detection, face capture and face comparison.
IP67 ingress protection.
