Video Doorbell

Rs. 12,500.00

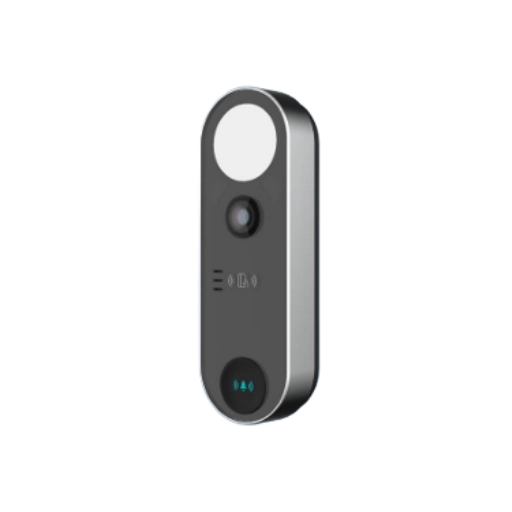

TD-E3110-IC/PE/WF is a 2MP video door station with a 1/2.8-inch progressive-scan CMOS sensor and a maximum resolution of 1920 × 1080. It provides a wide 170° diagonal field of view, face detection and capture, card and mobile-app access control, 2.4GHz Wi-Fi, IR and white LED illumination, PoE support and microSD card storage up to 256GB.

Specifications

Model		TD-E3110-IC/PE/WF
Camera	Image Sensor	1/2.8-inch progressive-scan CMOS
	Image Size	1920 × 1080
	Electronic Shutter	1/2s to 1/100000s
	Iris Type	Fixed iris
	Minimum Illumination	0 lux with white LED on
	Lens	2.3mm at F2.2; vertical FOV: 74°; horizontal FOV: 139°; diagonal FOV: 170°
	Lens Mount	M8
	WDR	80dB
	BLC	Yes
	HLC	Yes
	DNR	2D/3D noise reduction
Image	Video Compression	H.265+ / H.265 / H.264+ / H.264 / MJPEG
	H.264 Compression Standard	Baseline Profile / Main Profile / High Profile
	Bit Rate Type	VBR / CBR
	Bit Rate	64Kbps–4Mbps
	Resolution	1080P (1920 × 1080), 720P (1280 × 720), D1
	Main Stream	60Hz: 1920 × 1080/1280 × 720 at 1–30fps; 50Hz: 1920 × 1080/1280 × 720 at 1–25fps
	Sub Stream	60Hz: 720P/D1/CIF at 1–30fps; 50Hz: 720P/D1/CIF at 1–25fps
	Image Setting	Saturation, hue, brightness, contrast, wide dynamic range, sharpness, noise reduction, etc.; adjustable through the client or web browser
	Audio Compression	G.711A/U
Card	Card Type	Mifare card / Desfire card / FM1208 card / Gicard
	Card Reading Protocol	ISO 14443A/B
	Card Reading Frequency	13.56MHz
	Card Reading Duration	<1 second
	Card Reading Distance	0–3cm
	Card Number Storage	Maximum 3,000
Interfaces	Network	100Mbps RJ45
	Audio	Built-in microphone × 1; built-in speaker × 1
	RS485	Yes
	Alarm	1CH alarm input
	Door Lock Output	1CH
	Exit Button	1CH
	Door Contact Input	1CH
	Anti-Tamper Interface	1CH
	Reset Button	1
	Storage	Built-in microSD card slot × 1; supports up to 256GB
	Wiegand Interface	Yes; Wiegand input or output is configurable
	Wi-Fi	Supports 2.4GHz Wi-Fi
	Doorbell Button	Yes
	Indicator	Yes
Function	Remote Monitoring	Remote control through Web Client or CMS
	Online Connection	Supports simultaneous monitoring for up to three users Supports real-time multi-stream transmission
	Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, UPnP, HTTPS and HTTP
	Interface Protocol	ONVIF
	Storage	Network remote storage and microSD card storage
	Intelligent Analytics	Face detection, face capture, scene-change detection, video-blur detection and video-cast detection
	General Function	Watermark, IP-address filtering, video mask, heartbeat, illegal-login detection and image-distortion correction
	Door Opening Mode	Card swiping or app remote control
	White-Light Distance	0.3–1m soft light
	IR Light Distance	0.3–3m
	Ingress Protection	IP65
Face	Face Detection	A facial image with a pupil distance of more than 20 pixels can be detected
	Face Capture	Outputs the optimal face image through precise detection, tracking, capturing, scoring and screening of moving faces
	Original Image Capturing	Supports original-image capturing and user-defined overlaid information, including device ID and time
	Intelligent Light Compensation	Built-in high-efficiency white-light LEDs
Others	Power	DC 12V/0.5A
	PoE Power Supply	Yes
	Power Consumption	<6W
	Environmental Protection	RoHS 2.0, REACH, WEEE and Directive 94/62/EC
	Working Environment	-20°C to 50°C; humidity less than 95% (non-condensing)
	Dimensions	150 × 50 × 29.8mm
	Net Weight	Approximately 145g
	Installation	Wall mounting

Features

Maximum resolution of 2MP (1920 × 1080).
Wide field of view for doorway security monitoring.
Supports access-control functions.
Supports noise suppression and echo cancellation.
Supports calling indoor stations and mobile apps.
Supports door opening by card swiping or mobile app.
Supports IR and white LED illumination.
Supports tampering alarms and door-contact alarms.
Supports 2.4GHz Wi-Fi.
Built-in microSD card slot with storage capacity up to 256GB.
Intelligent analytics include video-exception detection, face detection and face capture.
