Model Number: AM-C308-A
4/8 CH PoE NVR
Rs. 945,000.00
In stock
Estimated delivery between October 30 and November 01.

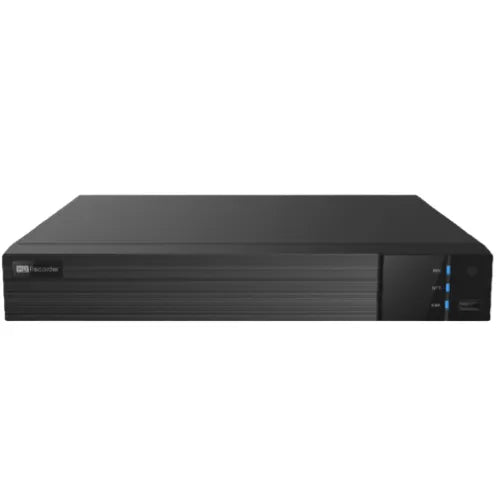

4/8 CH PoE NVR
Rs. 945,000.00
Rs. 945,000.00
The AMCOM AM-C308-A / AM-C308-B series is a 4/8 channel PoE NVR that supports 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P high definition IP video input. It adopts advanced SOC technology to ensure high definition recording in each channel and outstanding system robustness.
The series integrates 4/8 PoE network ports and supports direct connection of 4/8 CH IP cameras to the NVR, simultaneous 4/8 CH playback and 4K ultra high definition display. It meets the security requirements of home, financial, commerce, enterprise, transportation and government applications.
Specifications
| Feature | Specification |
|---|---|
| Operating System | Embedded Linux |
| Network Input |
AM-C308-A: 4 CH IPC input AM-C308-B: 8 CH IPC input |
| Network Input Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280 × 1024/960P/720P/960H/D1/CIF |
| Video Output |
1 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024 and 1024 × 768
1 VGA: 1920 × 1080, 1280 × 1024 and 1024 × 768 |
| Screen Display Mode |
AM-C308-A: 1/4 AM-C308-B: 1/4/6/8/9 |
| Video Compression | H.265S, H.265+, H.265, H.264 |
| Network Audio Input |
AM-C308-A: 4 CH IPC audio input AM-C308-B: 8 CH IPC audio input |
| Audio Input | 1 Port RCA (for two-way audio) |
| Audio Output | 1 Port RCA |
| Audio Compression | G.711 (U/A) |
| Record Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280 × 1024/960P/720P/960H/D1/CIF |
| Frame Rate | NTSC: 30fps; PAL: 25fps |
| Simultaneous Playback |
AM-C308-A: Max. 4 CH AM-C308-B: Max. 8 CH |
| Search Mode | Time Slice, Time, Event, Tag and Smart Search |
| Smart Search | Highlighted color displays the camera record in a certain period of time; different colors refer to different record events |
| Playback Function | Play, Pause, Fast Forward, Fast Backward and Digital Zoom |
| Decoding Capability (Live View / Playback) | 1 × 8MP@30fps; 6 × 1080P@30fps |
| Alarm Mode | Manual, Sensor, Motion, Exception and Smart Events |
| Alarm Input | Supports IPC alarm input |
| Alarm Output | Supports IPC alarm output |
| Trigger Events | Record, Snapshot, Preset, E-mail, etc. |
| Ethernet | 1 × RJ45 (10M/100M/1000M Ethernet Interface) |
| Protocols | TCP/IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, HTTP, SMTP, HTTPs, 802.1x, RTSP, RTP, RTCP, WebSocket, SNMP, IGMP and ONVIF |
| Bandwidth Rate |
80Mbps for Incoming and 80Mbps for Outgoing *When the AI function of the IPC is enabled, the actual incoming bandwidth (max. bitrate) is more than the set value in the NVR. |
| Client Connection | Max. 64 users access |
| Face Detection (AI by IPC) |
AM-C308-A: 4 CH AM-C308-B: 8 CH |
| Face Detection (AI by Device) | 2 CH (2MP) |
| Face Match | No |
| Statistical Graph of Information | Bar Graph |
| Statistical Mode of Information | Statistics by day, week, month, quarter and customized time period |
| Human/Vehicle Classification (AI by IPC) |
AM-C308-A: 4 CH AM-C308-B: 8 CH |
| Human/Vehicle Classification (AI by Device) | 2 CH (2MP) |
| Human/Vehicle Attribute Analysis (AI by IPC) | Support |
| Fisheye | Supports fisheye dewarping via Web Client and mobile APP |
| Plate Recognition (AI by IPC) | Support |
| Mobile Device OS | iOS, Android |
| Storage Capacity | 1 SATA 3.0 Hard Disk Interface, up to 10TB capacity |
| Backup Mode |
Local: U Disk, USB Mobile HDD Network Backup: Support |
| USB Interface | 2 × USB 2.0 |
| Remote Controller | Optional |
| PoE Ports |
AM-C308-A: 4 × 100M RJ45 AM-C308-B: 8 × 100M RJ45 |
| PoE Standard | IEEE 802.3af/at |
| PoE Output Power |
AM-C308-A: ≤48W AM-C308-B: ≤72W |
| Power Supply |
AM-C308-A: DC48V/1.25A AM-C308-B: DC48V/1.8A |
| Power Consumption | ≤10W (Without Hard Disk) |

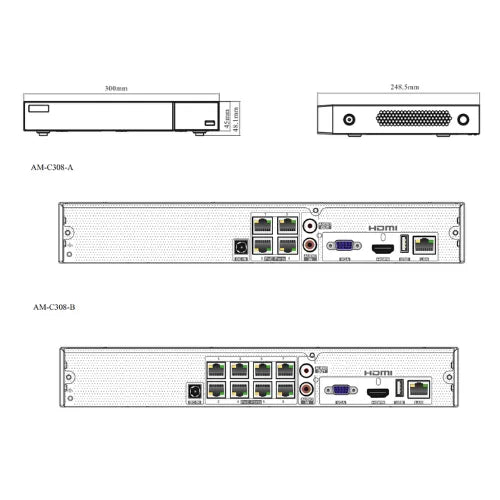

| Dimensions | 300mm × 249mm × 45mm (W × D × H) |
| Operating Environment | -10°C to +50°C, 10%–90% RH |
| Certification | CE, FCC, BIS |
| Environmental Protection | Complies with EU RoHS Directive |
Key Features
- Supports 4/8 CH IP video input up to 8MP resolution
- H.265 and H.264 high profile compression for high-quality video at much lower bitrate
- Intuitive, user-friendly Windows-style GUI with mouse operation
- Multi-mode recording: manual, timed, motion, sensor, POS and AI recording
- 4/8 CH simultaneous playback
- Search by time slice, time, event, tag and smart search
- Supports multiple VCA events such as object abandoned/missing, region intrusion, tripwire and video exception
- POS information overlay on live view and playback
- Express and flexible backup via USB and network
- Pentaplex operation: preview, record, playback, backup and remote access
- DHCP, DDNS and PPPoE network protocols
- Remote control via Web or CMS: preview, playback, backup, PTZ and configuration
- 4/8 built-in PoE ports for direct IP camera connection and power supply
- Dual stream technology for local storage in high definition and remote network transmission
- Multi-user online access simultaneously
- Authorization management, log view and device status view
- 4K output for true high resolution display
- Powerful mobile surveillance via iOS and Android smartphones
