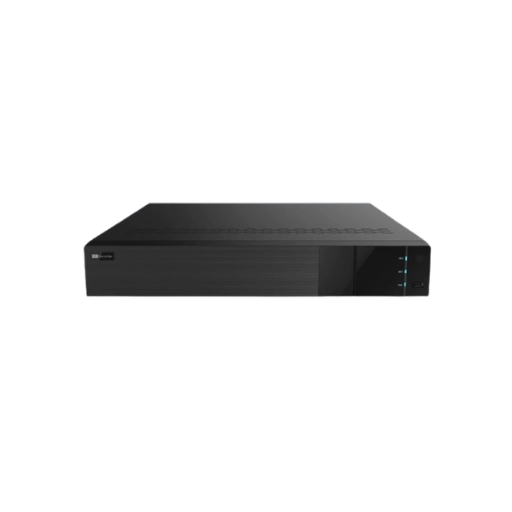

32 CH NVR

Rs. 23,500.00

TD-3300H2-B2 series supports 16/32 CH 16MP /12MP / 9MP/ 8MP / 6MP /5MP / 4MP /3MP / 1080P / 1280x1024/960P/ 720P high definition IP input, which adopts the advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. Mouse E-mail STD F R VCA 4K 16MP TD-3300H2-B2 series supports 16/32CH IPC input , simultaneous 16CH playback, and 4K high definition display. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.

Specifications

Model		TD-3316H2-B2	TD-3332H2-B2
System	OS	Embedded Linux
Video	Compression	H.265S / H.265+ / H.265 / H.264
	IP Video Input	16CH IPC input	32CH IPC input
	Resolution	16MP / 12MP / 9MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P / 720P / 960H / D1 / CIF
	Network Bandwidth	192Mbps / 192Mbps (incoming / outgoing)	320Mbps / 256Mbps (incoming / outgoing)
	Network Bandwidth	Note: When the AI function of the IPC is enabled, the actual incoming bandwidth/maximum bitrate is more than the set value in the NVR.
	Output	HDMI1: 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768 HDMI2: 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA and HDMI1 output the same video source
	Multi-screen Display	Main output: 1 / 4 / 6 / 8 / 9 / 13 / 16 (live view) AUX output: 1 / 4 / 6 / 8 / 9 (live view) Maximum 16+9CH local live view	Main output: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 (live view) AUX output: 1 / 4 / 6 / 8 / 9 (live view) Maximum 32+9CH local live view
Audio	Network Input	16CH IPC audio input	32CH IPC audio input
	2-way Audio	RCA × 1
	Local Output	RCA × 1
	Compression	G.711 (U/A)
Record	Resolution	16MP / 12MP / 9MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P / 720P / 960H / D1 / CIF
Record	Frame Rate	NTSC: 30fps; PAL: 25fps
Playback	Simultaneous Playback	Maximum 16CH
	Search	Time slice / time / event / tag / smart search
	Smart Search	Highlighted colour displays the camera recording in a certain period of time; different colours refer to different recording events.
	Function	Play, pause, FF, FB, digital zoom, etc.
Decoding Capability	Live View / Playback	Non-AI Mode: 1 × 16MP @ 30fps / 4 × 6MP @ 30fps / 9 × 3MP @ 30fps / 16 × 2MP @ 30fps AI Mode: 1 × 16MP @ 30fps / 4 × 5MP @ 30fps / 9 × 2MP @ 30fps / 16 × 720P @ 30fps
Alarm	Mode	Manual, sensor, motion, exception, smart events, etc.
	Input	8CH local alarm input
	Output	4CH
	Triggering	Record, snapshot, preset, email, etc.
Face	Face Detection Performance (AI by IPC)	16CH	32CH
	Face Detection Performance (AI by Device)	2CH (2MP)
	Face Match Performance	6CH
	Comparison Capability	18 pictures / second
	Face Picture Database	32 libraries 10,000 face pictures
	Face Picture Search	Search by picture is supported
	Database Management	Add, modify, delete and search face pictures
	Face Picture Adding	Add face pictures through APP, WEB and external import
	Face Picture Comparison	Supports allow list, block list and stranger match alarm
	Track	Track display on a map
	Statistical Graph of Information	Bar graph
	Statistical Mode of Information	Statistics by day, week, month and quarter, as well as a customised time period
Perimeter Protection	Human/Vehicle Classification (AI by IPC)	16CH	32CH
Perimeter Protection	Human/Vehicle Classification (AI by Device)	2CH (2MP)
Video Metadata	Human/Vehicle Attribute Analysis (AI by IPC)	Yes
Other Functions	Fisheye	Supports fisheye dewarping via NVR/Web Client/mobile APP
Other Functions	Plate Recognition (AI by IPC)	Yes
Network	Interface	RJ45 1000Mbps × 2
	Protocol	TCP/IP, HTTP, HTTPS, 802.1X, FTP, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, IPv4, UDP, WebSocket, PPPoE, SNMP, IGMP
	Client Connection	Maximum 64 users access	Maximum 128 users access
Mobile Device	OS	iOS, Android
Storage	HDD Interface	SATA × 2, maximum 10TB for each HDD
Backup	Local Backup	USB drive, USB mobile HDD
Backup	Network Backup	Yes
External Interface	RS485	Yes (full-duplex), connects to PTZ or keyboard
	USB	USB 3.0 × 1; USB 2.0 × 2
	Remote Controller	Optional
Others	Power Supply	DC 12V/4A
	Consumption	≤ 20W (without HDD)
	Certificate	CE, FCC
	Environmental Protection	Complies with Directive EU RoHS, REACH and WEEE
	Dimensions (mm)	380 × 268 × 48.1 (W × D × H)
	Working Environment	-10°C to 50°C; 10% to 90% humidity

Features

Supports 16/32CH 16MP/12MP/9MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 × 1024/960P/720P/960H/D1/CIF IPC input.
H.265S/H.265+/H.265/H.264 video coding.
Intuitive and user-friendly graphical user interface (GUI) with Windows-style mouse operation.
Multi-type recording: manual / timed / motion / sensor / POS / AI recording.
Playback: 16CH simultaneous playback.
Search: time slice, time, event, tag and smart search.
Supports face detection and comparison.
Supports multiple VCA (Video Content Analytics) events, including object abandoned/missing, region intrusion, tripwire and video exception.
Supports licence plate recognition.
Supports POS information overlay on live view and playback.
Pentaplex operation: preview, record, playback, backup and remote access.
Supports DHCP, DDNS and PPPoE network protocols.
Compatible with third-party IPCs, including ONVIF and Hikvision.
Remote control via Web Client or CMS: preview, playback, backup, PTZ and configuration.
Dual-stream technology supports high-definition local storage, remote network transmission and mobile surveillance.
Supports multiple simultaneous online users.
Includes authorisation management, log viewing and device-status viewing.
4K output for true high-resolution display.
Supports PTZ presets and auto cruise.
Supports NAT function and QR-code scanning through mobile phones.
Powerful mobile surveillance through smartphones using iOS and Android.
