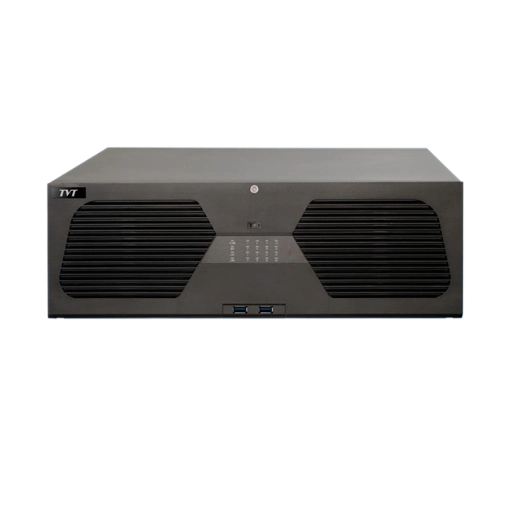

128 CH NVR

Rs. 245,500.00

This series of products supports 64/128CH 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 × 1024/960P/720P high-definition IP video input. It adopts advanced SOC technology to ensure high-definition recording on each channel and outstanding system robustness. The series supports 64/128CH IP input, simultaneous 16CH playback and 8K high-definition display. It can meet different security requirements for homes, financial institutions, commercial establishments, enterprises, transportation and government applications.

Specifications

Model		TD-3364H16-A3H	TD-33128H16-A3H
System	OS	Embedded Linux
Video	IP Video Input	64CH	128CH
	Network Bandwidth	Incoming: 640Mbps Outgoing: 640Mbps	Incoming: 768Mbps Outgoing: 768Mbps
	Resolution	16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P / 720P / 960H / D1 / CIF
	Output	HDMI1: 7680 × 4320 @ 60Hz, 7680 × 4320 @ 30Hz, 3840 × 2160 @ 60Hz, 3840 × 2160 @ 30Hz, 1920 × 1080, 1280 × 1024, 1024 × 768 (When the resolution of HDMI1 output is 8K, HDMI2 is unavailable.) HDMI2: 3840 × 2160 @ 60Hz, 3840 × 2160 @ 30Hz, 1920 × 1080, 1280 × 1024, 1024 × 768 HDMI3: 3840 × 2160 @ 60Hz, 3840 × 2160 @ 30Hz, 1920 × 1080, 1280 × 1024, 1024 × 768 HDMI4: 1920 × 1080, 1280 × 1024, 1024 × 768 VGA × 1: 1920 × 1080, 1280 × 1024, 1024 × 768 (VGA and HDMI1 output the same video source.)
	Multi-Screen Display	Main output: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 / 64 AUX output 1: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 AUX output 2: 1 / 4 / 6 / 8 / 9 / 13 / 16 AUX output 3: 1 / 4 / 6 / 8 / 9 / 13 / 16 Maximum: 132 (64 + 36 + 16 + 16)
	Compression	H.264 / H.265 / H.265+ / H.265S
Audio	Network Input	64CH	128CH
	Local Input	RCA × 1 for two-way audio
	Local Output	RCA × 1
	HDMI Audio Output	Supported
	Compression	G.711 (U/A)
Record	Resolution	16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P / 720P / 960H / D1 / CIF
Record	Frame Rate	NTSC: 30fps; PAL: 25fps
Playback	Simultaneous Playback	16CH
	Search	Time slice / time / event / tag / smart search
	Function	Play, pause, fast forward, rewind, digital zoom, previous frame, next frame, etc.
Decoding Capability	Live View	1CH 16MP @ 30fps / 4CH 12MP (available only for the main output)
Decoding Capability	Playback	1CH 16MP @ 30fps / 4CH 8MP (available only for the main output)
Alarm	Mode	Manual, sensor, motion, exception and smart events
	Input	24CH
	Output	8CH
	Triggering	Record, snapshot, preset, email, etc.
Face Recognition	Face Detection Performance (AI by IPC)	64CH	128CH
	Face Detection Performance (AI by Device)	4CH
	Face Match Performance	16CH
	Comparison Capability	36 pictures/second
	Face Picture Database	32 libraries 10,000 face pictures
	Face Picture Search	Search by picture is supported
	Database Management	Add, modify, delete and search face pictures
	Face Picture Adding	Add face pictures through the app, Web Client and external import

Features

Supports 64/128CH 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 × 1024/960P/720P/960H/D1/CIF IP video input.
Supports H.265S, H.265+, H.265 and H.264 video coding.
Intuitive and user-friendly graphical user interface with Windows-style mouse operation.
Multi-mode recording: manual, timed, motion, sensor, POS and AI recording.
Supports simultaneous playback of up to 16 channels.
Time slice, time, event, tag, smart and target-database search.
Supports face detection and comparison.
Supports multiple VCA events, including region intrusion and tripwire.
Supports POS information overlay on live view and playback.
Supports RAID 0, 1, 5, 6 and 10.
Flexible backup through USB and network.
Supports preview, recording, playback, backup and remote access.
Supports DHCP, DDNS and PPPoE network protocols.
Compatible with third-party IP cameras, including ONVIF and Hikvision devices.
Remote control through Web Client or CMS for preview, playback, backup, PTZ and configuration.
Supports multiple simultaneous online users.
Includes authorisation management, log viewing and device-status viewing.
Supports 8K ultra-high-resolution output.
Supports PTZ presets and automatic cruise with up to 255 presets and eight cruises.
Supports NAT function and QR-code scanning through mobile phones.
Mobile surveillance through smartphones using iOS and Android.
