Model Number: 7A09A-H1

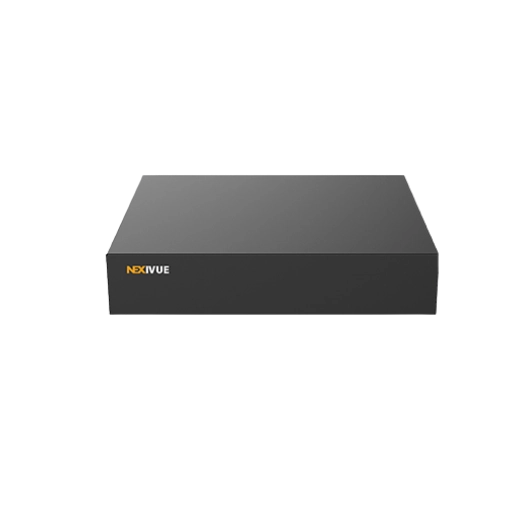

9Ch. 4K Network Video Recorder
Rs. 6,200.00
In stock
Estimated delivery between October 30 and November 01.
9Ch. 4K Network Video Recorder
Rs. 6,200.00
Rs. 6,200.00
NEXICODE is an optimized implementation of H.265 video compression. It uses intelligent encoding algorithms that adapt to different monitoring scenarios, significantly reducing bitrate and storage requirements without compromising video quality. NEXICODE improves overall system efficiency and provides a cost-effective recording solution.
Specifications
| Feature | Specification |
|---|---|
| Operating System | Embedded LINUX |
| IP Camera Input | 9 Channels |
| Video Input | 9 Channels (12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280 × 1024/960p/720p/D1/CIF) |
| Resolution | 12MP (4000 × 3000), 8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (2592 × 1944), 4MP (2688 × 1520/2560 × 1440), 3MP (2048 × 1536), 1080p (1920 × 1080), 1280 × 1024, 960p (1280 × 960), 720p (1280 × 720), 960H (960 × 480), D1 (720 × 576/720 × 480) |
| Preview Capability | 1 CH 12MP/8MP@25fps, 2 CH 6MP/5MP@25fps, 4 CH 4MP/3MP@25fps, 7 CH 1080p@25fps, 9 CH 720p/D1@25fps |
| Playback Capability | 1 CH 12MP/8MP@25fps, 2 CH 6MP/5MP@25fps, 4 CH 4MP/3MP@25fps, 7 CH 1080p@25fps, 9 CH 720p/D1@25fps |
| Bandwidth Rate | 80Mbps for Input, 80Mbps for Recording and 80Mbps for Transmission |
| Video Output | 1 HDMI: 4K (3840 × 2160), 2K (2560 × 1440), 1920 × 1080, 1280 × 1024, 1280 × 720 and 1024 × 768 |
| Video Display Split | 9 Channels/8 Channels/6 Channels/4 Channels/2 Channels/1 Channel |
| Record Mode | Manual/Normal Record/Motion Detection/Smart Event |
| OSD | Camera Title, Time, Recording, Motion Detection and Event Alarm |
| Motion Detection | 9 Channels, MD Zones: 396 (22 × 18) |
| Trigger Events | Recording, Email, FTP, Snapshot, Show Message and Pop-up Window |
| Smart Event | Enables event-based recording and actions for efficient monitoring. Event types include Loitering Detection, Line Crossing Detection, Intrusion Detection and People Gathering. |
| Search Mode | All, Normal Video, Motion Detection, Tag Search, Smart Event, Picture and Log |
| Playback Function | Play, Pause, Fast Forward, Rewind, Previous Frame, Next Frame, Zoom, Clip and Audio |
| Digital Zoom | Support |
| Video Compression | NEXICODE, H.265, H.264 |
| Audio Compression | G711U, G711A, AAC |
| Audio Bit Rate | 64kbps |
| Protocols | IPv4/IPv6, TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, NexiQloud, PPPoE and ONVIF (Profile S, Profile T) |
| Remote Operations | Support |
| OTA Upgrade | Support |
| Backup Mode | USB Device/Network |
| Browser | Microsoft Edge, Google Chrome, Mozilla Firefox and Safari |
| USB Interface | 2 USB 2.0 Interfaces |
| Ethernet | 1 × RJ45 (10M/100M Self-Adaptive Ethernet Interface) |
| Storage Capacity | 1 SATA Hard Disk Interface (3.5-inch SATA), up to 10TB capacity |
| Power Consumption | DC12V/2A, ≤10W (Without Hard Disk) |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 10%–90% RH |
| Dimensions | 200mm × 175mm × 40mm |
| Weight | 500g (Without HDD) |
Key Features
- Up to 9-channel IP camera input
- Supports up to 12MP resolution
- NEXICODE, H.265 and H.264 video compression
- Maximum incoming bandwidth of 80Mbps
- Maximum outgoing bandwidth of 80Mbps
- One SATA port with up to 10TB storage capacity
- Supports 4K HDMI video output
- Smart event detection and event-based recording
- Two USB 2.0 interfaces
- Remote operation and OTA upgrade support
