8 CH NVR

Rs. 9,450.00

TD-3000H1-B1-B series supports 8 CH 6MP/5MP/4MP/3MP/1080P/960P/720P high-definition IP video input. It adopts advanced SOC technology to ensure high-definition recording in every channel and outstanding system robustness.

TD-3000H1-B1-B series supports 8 CH IP input, simultaneous 8 CH playback and 1080P high-definition display. This product series can meet the security requirements of homes, financial institutions, commercial establishments, enterprises, transportation and government organisations.

Specifications

Model		TD-3008H1-B1-B
System	OS	Embedded Linux
Video	Network Input	8 CH IPC input
	Network Input Resolution	6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / CIF
	Output	HDMI × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024 / 1024 × 768 HDMI and VGA output the same video source
	Compression	H.265S / H.265+ / H.265 / H.264
	Multi-screen Display	1 / 4	1 / 4 / 6 / 8 / 9
Audio	Network Input	4 CH IPC audio input	8 CH IPC audio input
	2-way Audio	No
	Local Output	No (HDMI supports audio output)
Record	Compression	G.711 (U/A)
	Resolution	6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / CIF
	Frame Rate	30fps / 25fps (NTSC/PAL)
Playback	Simultaneous Playback	Maximum 4 CH	Maximum 8 CH
	Search	Time slice / time / event / tag / smart search
	Smart Search	Highlighted colours display camera recordings from a selected time period, with different colours indicating different recording events.
	Function	Play, pause, FF, FB, digital zoom, etc.
Decoding Capability	Live View/Playback	1 CH 6MP; 4 CH 1080P
Alarm	Type	Manual, sensor, motion, exception, smart events, etc.
	Input	Supports IPC alarm input
	Output	Supports IPC alarm output
	Triggering	Record, snapshot, buzzer, preset, e-mail, etc.
Network	Interface	RJ45 100Mbps × 1
	Protocol	TCP/IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPS, RTSP, ONVIF, etc.
	Incoming Bandwidth	40Mbps	64Mbps
	Outgoing Bandwidth	40Mbps	64Mbps
	Client Connection	Maximum 10 users
Plate Detection	Plate Detection (AI by IPC)	Yes
Mobile Device	OS	iOS and Android
Storage	HDD Interface	SATA 3.0 × 1, maximum 10TB
Backup	Local Backup	USB flash drive and USB mobile HDD
Backup	Network Backup	Yes

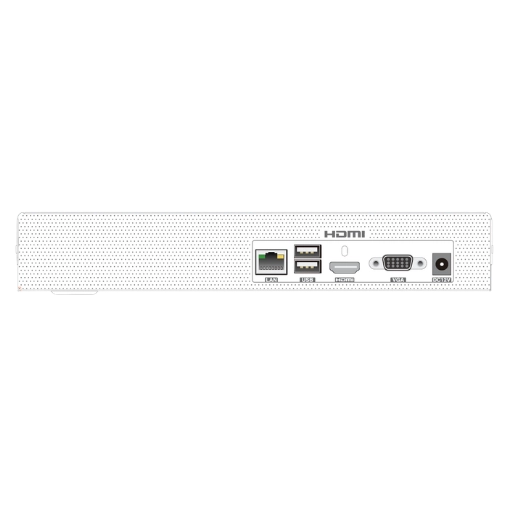

Port	USB	USB 2.0 × 2
Port	Remote Controller	No
Others	Power Supply	DC 12V / 1.5A
	Power Consumption	≤5W without HDD
	Dimensions	255 × 222 × 42mm (W × D × H)
	Working Environment	-10°C to 50°C; 10%–90% relative humidity
	Certificate	CE, FCC
	Environmental Protection	Complies with EU RoHS, REACH and WEEE directives

Features

Supports 8 CH 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, 960H, D1 and CIF IP video input.
Supports H.265S, H.265+, H.265 and H.264 video coding.
Intuitive and user-friendly graphical user interface with Windows-style mouse operation.
Multiple recording modes: manual, timed, motion, sensor, POS and AI recording.
Supports simultaneous 8 CH playback.
Supports time slice, time, event, tag and smart search.
Supports multiple VCA events, including object abandoned/missing, region intrusion, tripwire, video exception and crowd density.
Supports POS information overlay on live view and playback.
Express and flexible backup through USB and network.
Pentaplex operation: preview, recording, playback, backup and remote access.
Supports DHCP, DDNS and PPPoE network protocols.
Remote control through Web Client or CMS, including preview, playback, backup, PTZ and configuration.
Dual-stream technology supports high-definition local storage and remote network transmission.
Supports remote surveillance using mobile devices.
Supports authorisation management, log viewing and device status monitoring.
1080P HD output provides a true high-resolution display.
Supports NAT functionality and QR code scanning using mobile phones.
Powerful mobile surveillance through smartphones running iOS or Android.
