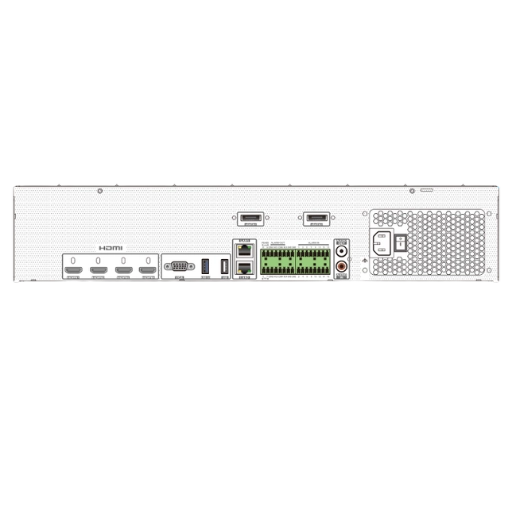

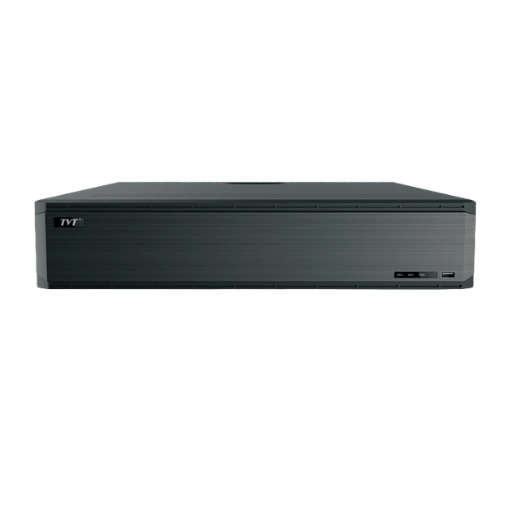

64 CH NVR

Rs. 87,500.00

TD-3364H8-A3H supports 64 CH 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 × 1024/960P/720P high-definition IP video input. It adopts advanced SOC technology to ensure high-definition recording in every channel and outstanding system robustness.

TD-3364H8-A3H supports 64 CH IP input, simultaneous 16 CH playback and 8K high-definition display. It can meet different security requirements for homes, financial institutions, commercial establishments, enterprises, transportation and government organisations.

Specifications

Model		TD-3364H8-A3H
System	OS	Embedded Linux
Video	IP Video Input	64 CH
	Network Bandwidth	Incoming: 640Mbps Outgoing: 640Mbps
	Resolution	16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P / 720P / 960H / D1 / CIF
	Output	HDMI 1: 7680 × 4320 @ 60Hz / 7680 × 4320 @ 30Hz / 3840 × 2160 @ 60Hz / 3840 × 2160 @ 30Hz / 1920 × 1080 / 1280 × 1024 / 1024 × 768 When HDMI 1 output resolution is 8K, HDMI 2 is unavailable. HDMI 2: 3840 × 2160 @ 60Hz / 3840 × 2160 @ 30Hz / 1920 × 1080 / 1280 × 1024 / 1024 × 768 HDMI 3: 3840 × 2160 @ 60Hz / 3840 × 2160 @ 30Hz / 1920 × 1080 / 1280 × 1024 / 1024 × 768 HDMI 4: 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA and HDMI 1 output the same video source.
	Multi-screen Display	Main output: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 / 64 AUX output 1: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 AUX output 2: 1 / 4 / 6 / 8 / 9 / 13 / 16 AUX output 3: 1 / 4 / 6 / 8 / 9 / 13 / 16 Maximum 132 CH display (64 + 36 + 16 + 16)
	Compression	H.264 / H.265 / H.265+ / H.265S
Audio	Network Input	64 CH
	Local Input	RCA × 1 (for two-way talk)
	Local Output	RCA × 1
	HDMI Audio Output	Supported
	Compression	G.711 (U/A)
Record	Resolution	16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P / 720P / 960H / D1 / CIF
Record	Frame Rate	NTSC: 30fps; PAL: 25fps
Playback	Simultaneous Playback	16 CH
	Search	Time slice / time / event / tag / smart search
	Function	Play, pause, FF, rewind, digital zoom, previous frame, next frame, etc.
Decoding Capability	Live View	1 CH 16MP @ 30fps / 4 CH 12MP (available only for main output)
Decoding Capability	Playback	1 CH 16MP @ 30fps / 4 CH 8MP (available only for main output)
Alarm	Mode	Manual, sensor, motion, exception, smart events, etc.
	Input	16 CH
	Output	4 CH
	Triggering	Record, snapshot, preset, e-mail, etc.
Face Recognition	Face Detection Performance (AI by IPC)	64 CH
	Face Detection Performance (AI by Device)	4 CH
	Face Match Performance	16 CH
	Comparison Capability	36 pictures per second
	Face Picture Database	32 libraries; 10,000 face pictures
	Face Picture Search	Search by picture supported
	Database Management	Add, modify, delete and search face pictures

Features

Supports 64 CH 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1280 × 1024, 960P, 720P, 960H, D1 and CIF IP input.
Supports H.265S, H.265+, H.265 and H.264 video coding.
Intuitive and user-friendly graphical user interface with Windows-style mouse operation.
Multiple recording modes: manual, timed, motion, sensor, POS and AI recording.
Supports simultaneous 16 CH playback.
Supports time slice, time, event, tag, smart and target-database search.
Supports face detection and comparison.
Supports multiple VCA events, including region intrusion and tripwire.
Supports OS information overlay on live view and playback.
Supports RAID 0, 1, 5, 6 and 10.
Express and flexible backup through USB and network.
Supports preview, recording, playback, backup and remote access.
Supports DHCP, DDNS and PPPoE network protocols.
Compatible with third-party IPCs, including ONVIF and Hikvision.
Remote control through Web Client or CMS, including preview, playback, backup, PTZ and configuration.
Supports multiple users online simultaneously.
Supports authorisation management, log viewing and device status monitoring.
8K output provides a true high-resolution display.
Supports PTZ presets and auto cruise, with up to 255 presets and 8 cruises.
Supports NAT functionality and QR code scanning using mobile phones.
Powerful mobile surveillance through smartphones running iOS or Android.

Authenticity Guaranteed

We only sell authentic products from verified brand partners and retail partners globally.

Download Product PDF
