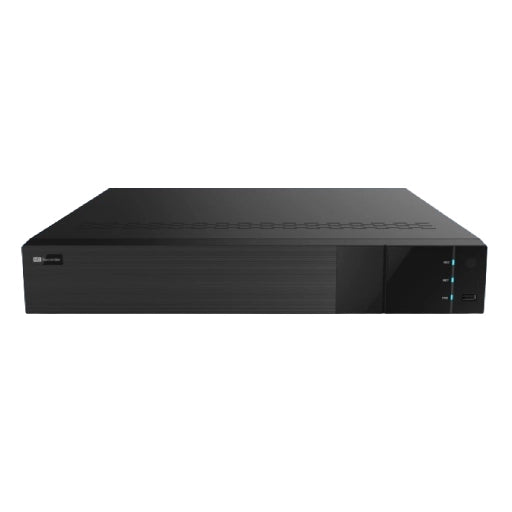

16 CH NVR

Rs. 11,500.00

TD-3116H1-B2-B series supports 4/8/16 CH 8MP/6MP/5MP/4MP/3MP/1080P/1280 × 1024/960P/720P high-definition IP video input. It adopts advanced SOC technology to ensure high-definition recording in every channel and outstanding system robustness.

TD-3100H1-B2-B series supports 4/8/16 CH IP input, simultaneous 4/8/16 CH playback and 4K ultra-high-definition display. It can meet different security requirements for homes, financial institutions, commercial establishments, enterprises, transportation and government organisations.

Specifications

Model		TD-3104H1-B2-B	TD-3108H1-B2-B	TD-3116H1-B2-B
System	OS	Embedded Linux
Video	Network Input	4 CH IPC input	8 CH IPC input	16 CH IPC input
	Network Input Resolution	8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P / 720P / 960H / D1 / CIF
	Output	HDMI × 1: 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024 / 1024 × 768
	Screen Display Mode	1 / 4	1 / 4 / 6 / 8 / 9	1 / 4 / 6 / 8 / 9 / 13 / 16
	Compression	H.265S / H.265+ / H.265 / H.264
Audio	Network Input	4 CH IPC audio input	8 CH IPC audio input	16 CH IPC audio input
	Local Input	RCA × 1 (for two-way audio)
	Local Output	RCA × 1
Record	Compression	G.711 (U/A)
	Resolution	8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P / 720P / 960H / D1 / CIF
	Frame Rate	NTSC: 30fps; PAL: 25fps
Playback	Simultaneous Playback	Maximum 4 CH	Maximum 8 CH	Maximum 16 CH
	Search	Time slice / time / event / tag / search
	Smart Search	Highlighted colours display camera recordings from a selected time period, with different colours indicating different recording events.
	Function	Play, pause, FF, FB, digital zoom, etc.
Decoding Capability	Live View/Playback	1 × 8MP @ 30fps; 6 × 1080P @ 30fps
Alarm	Mode	Manual, sensor, motion, exception and smart events
	Input	Supports IPC alarm input
	Output	Supports IPC alarm output
	Triggering	Record, snapshot, preset, e-mail, etc.
Network	Interface	RJ45 1000Mbps × 1
	Protocol	TCP/IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, HTTP, SMTP, HTTPS, 802.1x, RTSP, RTP, RTCP, WebSocket, SNMP, IGMP and ONVIF
	Incoming/Outgoing Bandwidth	40/40Mbps	80/80Mbps	144/144Mbps
	Client Connection	Maximum 64 users When the IPC AI function is enabled, the actual incoming bandwidth (maximum bitrate) may be greater than the value configured in the NVR.
Face	Face Detection Performance (AI by IPC)	4 CH	8 CH	16 CH
	Face Detection Performance (AI by Device)	2 CH
	Face Match Performance	No
	Statistical Graph of Information	Bar graph
	Statistical Mode of Information	Statistics by day, week, month, quarter and customised time period
Video Structure Analysis	Human/Vehicle Classification	Yes
Video Structure Analysis	Human/Vehicle Features	No
Other Functions	Fisheye	Supports fisheye dewarping through Web Client and mobile application
LPR	Plate Recognition (AI by IPC)	Yes
Mobile Device	OS	iOS and Android
Storage	HDD Interface	SATA 3.0 × 1, maximum 10TB
Backup	Local Backup	USB flash drive and USB mobile HDD
Backup	Network Backup	Yes
Port	USB	USB 2.0 × 2
Port	Remote Controller	Optional
Others	Power Supply	DC 12V / 1.5A
	Power Consumption	≤10W without HDD
	Dimensions	300 × 249 × 45mm (W × D × H)
	Working Environment	-10°C to 50°C; 10%–90% relative humidity
	Certificate	CE, FCC
	Environmental Protection	Complies with EU RoHS, REACH and WEEE directives

Features

Supports 4/8/16 CH 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1280 × 1024, 960P, 720P, 960H, D1 and CIF IP input.
Supports H.265S, H.265+, H.265 and H.264 video coding.
Intuitive and user-friendly graphical user interface with Windows-style mouse operation.
Multiple recording modes: manual, timed, motion, sensor, POS and AI recording.
Supports simultaneous 4/8/16 CH playback.
Supports time slice, time, event, tag and smart search.
Supports multiple VCA events, including object abandoned/missing, region intrusion, line crossing, video exception and crowd density.
Supports POS information overlay on live view and playback.
Express and flexible backup through USB and network.
Pentaplex operation: preview, recording, playback, backup and remote access.
Supports DHCP, DDNS and PPPoE network protocols.
Remote control through Web Client or CMS, including preview, playback, backup, PTZ and configuration.
Dual-stream technology supports high-definition local storage and remote network transmission.
Supports remote surveillance using mobile devices.
Supports authorisation management, log viewing and device status monitoring.
4K output provides a true high-resolution display.
Supports NAT functionality and QR code scanning using mobile phones.
Powerful mobile surveillance through smartphones running iOS or Android.
