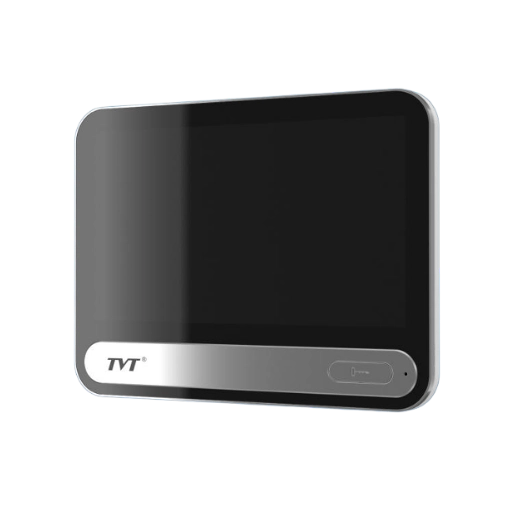

Video Intercom Indoor Station

Rs. 14,500.00

This Linux-based indoor station features a 7-inch IPS capacitive touchscreen with 1024 × 600 resolution. It supports simultaneous viewing of up to four video channels, up to 16 linked IP cameras, five indoor extensions, 2.4GHz Wi-Fi, 8-channel alarm input and microSD card storage up to 256GB. It can be powered through DC 12V or PoE.

Specifications

System	Operating System	Linux
Display	Display Screen	7-inch IPS touchscreen
	Display Resolution	1024 × 600; brightness: 300cd/m²
	Operation Method	Capacitive touchscreen
Video	Video Input	Maximum four video channels can be viewed simultaneously
	Network Input Resolution	6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P / 720P / 960H / D1 / CIF
	Compression	H.265+ / H.265 / H.264
Audio	Local Input	Built-in microphone
	Local Output	Built-in speaker
	Compression	G.711 (U/A)
Record	Resolution	Up to 8MP
Record	Frame Rate	NTSC: 30fps; PAL: 25fps
Playback	Simultaneous Playback	Maximum 1CH
Performance	Linked IPC	Maximum 16CH
Performance	Linked Indoor Extensions	Maximum 5
Network	Interface	RJ45 100Mbps self-adaptive Ethernet port × 1
	Wireless Network	Wi-Fi 802.11b/g/n
	Protocol	TCP/IP, DHCP, DNS, NTP, etc.
	Incoming/Outgoing Bandwidth	40/40Mbps
Interface	Audio	Built-in speaker and microphone with noise suppression and echo cancellation
	Storage	Built-in microSD card slot; supports up to 256GB
	Reset	Yes
	Alarm Input	8CH
	Wi-Fi	Yes, 2.4GHz Wi-Fi
	Unlocking Button	Yes
	RS485	Reserved
	Power Output	DC 12V, 200mA (available only when a DC 12V power supply is used)
Others	Power	DC 12V / PoE
	Power Consumption	< 6W
	Dimensions	180.6 × 135.6 × 26.8mm
	Net Weight	Approximately 0.36kg
	Installation	Wall mounting
	Working Environment	-20°C to 50°C; humidity less than 95% (non-condensing)
	Certificate	CE and FCC
	Environmental Protection	Complies with EU RoHS, REACH and WEEE directives

Features

7-inch IPS touchscreen.
A maximum of six indoor stations can be installed in the same room.
Supports live preview of door stations and linked cameras.
Supports snapshot when calling through the door station; a microSD card is required.
Supports Do Not Disturb function.
Supports noise suppression and echo cancellation.
Supports 8-channel zone alarm access.
Supports a self-defined unlocking password.
Supports 2.4GHz Wi-Fi.
Supports one-channel DC 12V, 200mA power output for powering a sensor.
