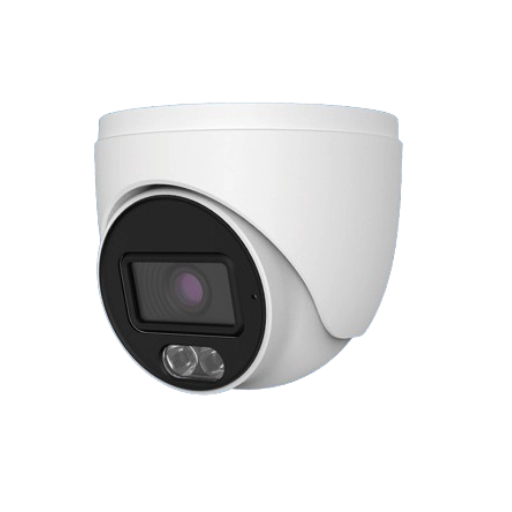

5 MP Dual Illumination Analog Turret Camera

Rs. 6,750.00

TD-7554AS2S is a 5MP surveillance camera supporting 5MP imaging at 20fps and real-time 4MP imaging. It supports AHD, TVI, CVI and CVBS video output, CMOS progressive scanning, DWDR, OSD control, coaxial audio transmission and IP67 ingress protection. It provides an IR viewing distance of 20–30 metres and a white-light viewing distance of up to 20 metres.

Specifications

Model		TD-7554AS2S
Camera	Image Sensor	1/2.5″ CMOS
	Resolution	5MP
	Image Size	2944 × 1656
	Video Output	AHD / TVI / CVI / CVBS
	Audio	1CH built-in microphone
	Image System	PAL / NTSC
	Electronic Shutter	Auto
	View Distance	IR range: 20–30m; white-light range: up to 20m
	Frame Rate	TVI: 2944 × 1656 @ 20fps; 2560 × 1440 @ 25/30fps AHD: 2944 × 1656 @ 20fps; 2560 × 1440 @ 25/30fps CVI: 2560 × 1440 @ 25/30fps CVBS: PAL / NTSC
	Minimum Illumination	0.005 lux @ F1.2, AGC ON; 0 lux with LED ON
	Lens	2.8mm
	Lens Mount	M12
	S/N Ratio	≥52dB, AGC OFF
	Ingress Protection	IP67
Functions	Function Control	OSD (COC control)
	Digital WDR	Yes
	Digital NR	Yes, 2D DNR; 3D DNR only when used with TVT DVRs
	AGC	Yes
	Auto White Balance	Yes
	BLC	Yes
	Contrast	Yes
	Saturation/Colour Gain	Yes
	Sharpness	Yes
	Coaxial Audio	Yes
	Image Setting	Yes
	Defect Correction	Auto
	Language	Chinese and English
	Angle Adjustment	Pan: 0°–360°; Tilt: 0°–75°; Rotation: 0°–360°
Others	Power Supply	DC 12V (±10%)
	Power Consumption	LED OFF: <1W; LED ON: <4W
	Working Environment	-10°C to 40°C; 10%–90% relative humidity
	Dimensions	Ø94.6 × 82.8mm
	Weight (Net)	Approximately 0.39kg

Features

5MP imaging at 20fps and real-time 4MP imaging with high resolution and true colour.
AHD, TVI and CVI standard and lossless video output.
Supports resolution up to 1500 TVL.
CMOS progressive scanning perfectly captures moving objects.
Supports DWDR.
Supports OSD menu control.
Supports high-speed, long-distance and real-time transmission.
20–30m IR viewing distance and up to 20m white-light viewing distance.
IP67 ingress protection.
Supports COC control.
Supports coaxial audio transmission, temporarily available only in TVI signal mode.

Authenticity Guaranteed

We only sell authentic products from verified brand partners and retail partners globally.

Download Product PDF
