Model Number: AM-C332-D
16/32 CH NVR
Rs. 42,350.00
In stock
Estimated delivery between October 30 and November 01.
16/32 CH NVR
Rs. 42,350.00
Rs. 42,350.00

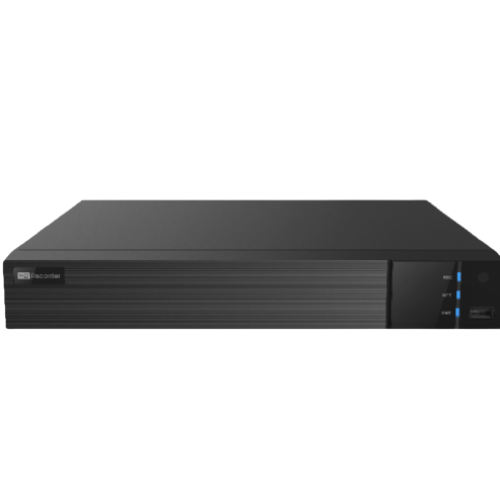

The AMCOM AM-C332-D series is a 16/32 channel NVR that supports 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P high definition IP input. It adopts advanced SOC technology to ensure high definition recording in each channel and outstanding system robustness.
The series supports 16/32 CH IPC input, simultaneous 16 CH playback and 4K high definition display. It meets the security requirements of home, financial, commerce, enterprise, transportation and government applications.
Specifications
| Feature | Specification |
|---|---|
| Operating System | Embedded Linux |
| Video Compression | H.265S, H.265+, H.265, H.264 |
| IP Video Input |
16 CH model: 16 CH IPC input 32 CH model: 32 CH IPC input |
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 × 1024/960P/720P/960H/D1/CIF |
| Network Bandwidth |
16 CH model: 160Mbps Incoming / 160Mbps Outgoing 32 CH model: 192Mbps Incoming / 192Mbps Outgoing |
| Video Output |
HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024 and 1024 × 768
HDMI2: 1920 × 1080, 1280 × 1024 and 1024 × 768 1 VGA: 1920 × 1080, 1280 × 1024 and 1024 × 768 VGA and HDMI1 output the same video source |
| Network Audio Input |
16 CH model: 16 CH IPC audio input 32 CH model: 32 CH IPC audio input |
| 2-way Audio | 1 Port RCA |
| Audio Output | 1 Port RCA |
| Audio Compression | G.711 (U/A) |
| Record Stream | Dual Stream Recording |
| Record Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 × 1024/960P/720P/960H/D1/CIF |
| Frame Rate | NTSC: 30fps; PAL: 25fps |
| Simultaneous Playback | Max. 16 CH |
| Search Mode | Time Slice, Time, Event, Tag and Smart Search |
| Smart Search | Highlighted color displays the camera record in a certain period of time; different colors refer to different record events |
| Playback Function | Play, Pause, Fast Forward, Fast Backward, Digital Zoom, etc. |
| Decoding Capability (Live View / Playback) | 1 CH 12MP; 4 CH 1080P |
| Multi-Screen Display Mode |
Dual Output Mode (default mode): supports HDMI2 output, but does
not support AI by device
AI Mode: HDMI2 output and 12MP video input (live view/playback) are unavailable, but 8MP video input is supported |
| Dual Output Mode Display |
16 CH model: 16 CH (HDMI1) + 9 CH (HDMI2) 32 CH model: 32 CH (HDMI1) + 4 CH (HDMI2) |
| AI Mode Display |
16 CH model: 16 CH (HDMI1) 32 CH model: 24 CH (HDMI1) |
| Alarm Mode | Manual, Sensor, Motion, Exception, Smart Events, etc. |
| Alarm Input | 16 CH local alarm input |
| Alarm Output | 4 CH |
| Trigger Events | Record, Snapshot, Preset, E-mail, etc. |
| Face Detection (AI by IPC) |
16 CH model: 16 CH 32 CH model: 32 CH |
| Face Detection (AI by Device) | 2 CH (2MP) |
| Face Match | 6 CH |
| Comparison Capability | 18 pictures/second |
| Face Picture Database | 32 libraries, 10000 face pictures |
| Face Picture Search | Search by picture is supported |
| Database Management | Add, modify, delete and search face pictures |
| Face Picture Adding | Add face pictures through APP, WEB and external import |
| Face Picture Comparison | Supports allow list, block list and stranger match alarm |
| Track | Track display on a map |
| Statistical Graph of Information | Bar Graph |
| Statistical Mode of Information | Statistics by day, week, month, quarter and customized time period |
| Human/Vehicle Classification | Support |
| Fisheye | Supports fisheye dewarping via Web Client and mobile APP |
| Plate Recognition | Support |
| Ethernet | 2 × RJ45 (1000Mbps Ethernet Interface) |
| Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTSP, SNMP, ONVIF, etc. |
| Client Connection |
16 CH model: Max. 10 users access 32 CH model: Max. 20 users access |
| Mobile Device OS | iOS, Android |
| Storage Capacity | 4 SATA Hard Disk Interfaces, up to 10TB per HDD |
| E-SATA Interface | 1 × E-SATA |
| Backup Mode |
Local: U Disk, USB Mobile HDD Network Backup: Support |
| RS485 | Support (full-duplex); connect to PTZ or keyboard |
| USB Interface | 1 × USB 3.0; 2 × USB 2.0 |
| Remote Controller | Optional |
| Power Supply | ATX 250W |
| Power Consumption | ≤20W (Without Hard Disk) |
| Certification | CE, FCC, BIS |
| Environmental Protection | Complies with EU RoHS, REACH and WEEE Directives |

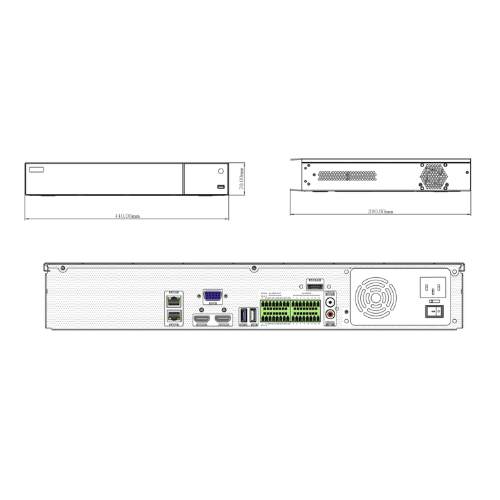

| Dimensions | 440mm × 390mm × 70mm (W × D × H) |
| Operating Environment | -10°C to +50°C, 10%–90% RH |
Key Features
- Supports 16/32 CH 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF IP video input
- H.265S/H.265+/H.265/H.264 video coding
- Intuitive, user-friendly Windows-style GUI with mouse operation
- Multi-type recording: manual, timed, motion, sensor, POS and AI recording
- 16 CH simultaneous playback
- Search by time slice, time, event, tag and smart search
- Supports face detection and comparison
- Supports multiple VCA events such as object abandoned/missing, region intrusion, tripwire and video exception
- Supports license plate recognition
- POS information overlay on live view and playback
- Pentaplex operation: preview, record, playback, backup and remote access
- DHCP, DDNS and PPPoE network protocols
- Compatible with third-party IPCs via ONVIF
- Remote control via Web Client or CMS: preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage in high definition, remote network transmission and mobile surveillance
- Multi-user online access simultaneously
- Authorization management, log view and device status view
- 4K output for true high resolution display
- PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Powerful mobile surveillance via iOS and Android smartphones
